A02701-K01 - Unico System Transformer Replacement Kit, 120-208-230V/24V, 48VA
Ships in 5x5x5 inch pkg; 1 lbs
This item replaces old product codes A00057-GO5, A00057-GO6, and A00057-G04 (Discontinued)

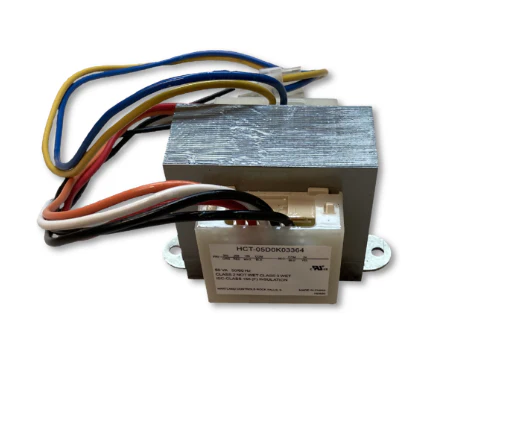

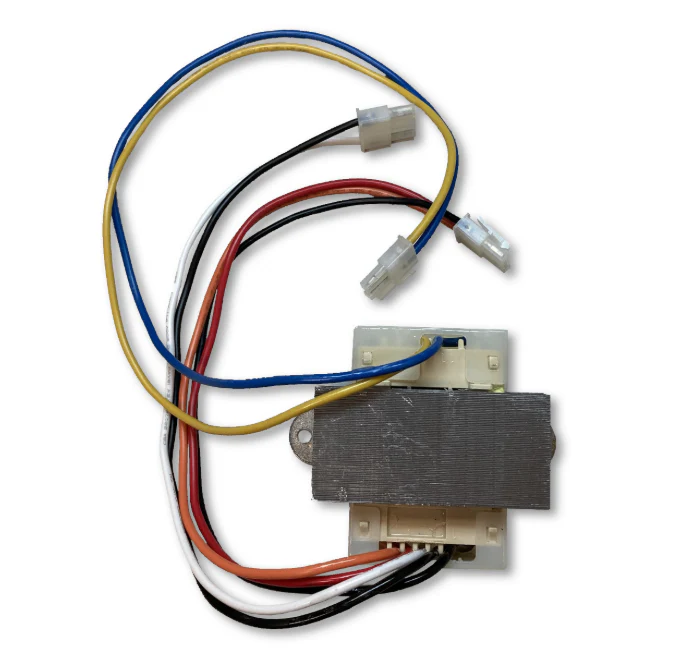

A02701-K01 Dual Voltage Transformer Kit for the ST2 or EC control boxes. Kit contents include (1) A00057-G06 Dual Voltage Transfomer [120-208-230V/24V, 48VA], (1) Low-voltage wire harness adapter, and (1) High-voltage wire harness adapter.
Unico’s EC2 blowers and Vertical units now come equipped with this new transformer that provides the ability to use either 120V or 208/230V line voltage. This new Dual Voltage Transformer (DVT) comes configured for 208/230V when ordered and with two simple steps, it easily converts to 120V when needed. It's 100% backwards compatible, and can be used with any existing Unico system that’s using an EC motor. This new DVT essentially makes the EC1 units obsolete and replaces both the A00057-G04 (208/230V) and A00057-G05 (120V) transformers.
The Unico System uses less than one-third of the space in the built environment than a traditional system. It can deliver up to 9 tons of air conditioning in the same space as a 3-ton traditional unit.
We’ve also added a new motor harness, part A02624-G01, which replaces the existing A01472-G01 (208/230V EC) and A01472-G02 (120V EC) harnesses.
Technical Specifications:
| Name | Value |
|---|---|
| Unico Model | 1218, 2430, 3036, 3642 |
| Tonnage | 1.0-Ton, 1.5-Ton, 2.0-Ton, 2.5-Ton, 3.0-Ton, 3.5-Ton, 4.0-Ton, 4.5-Ton, 5.0-Ton |
| Model Series | M-Series, V-Series |
| Motor Type | PSC, EC |
| Material | Multiple |
| Power Supply | 120/1/60, 208-230/1/60, 230/1/60 |
| Brand | Unico |
| Installation Orientation | Horizontal, Vertical Upflow |
| Certifications | UL, RU, CSA, CE |
| Spare Part Type | Transformer |
Ships in 5x5x5 inch pkg; 1 lbs
This item replaces old product codes A00057-GO5, A00057-GO6, and A00057-G04 (Discontinued)
A02701-K01 Dual Voltage Transformer Kit for the ST2 or EC control boxes. Kit contents include (1) A00057-G06 Dual Voltage Transfomer [120-208-230V/24V, 48VA], (1) Low-voltage wire harness adapter, and (1) High-voltage wire harness adapter.
Unico’s EC2 blowers and Vertical units now come equipped with this new transformer that provides the ability to use either 120V or 208/230V line voltage. This new Dual Voltage Transformer (DVT) comes configured for 208/230V when ordered and with two simple steps, it easily converts to 120V when needed. It's 100% backwards compatible, and can be used with any existing Unico system that’s using an EC motor. This new DVT essentially makes the EC1 units obsolete and replaces both the A00057-G04 (208/230V) and A00057-G05 (120V) transformers.
The Unico System uses less than one-third of the space in the built environment than a traditional system. It can deliver up to 9 tons of air conditioning in the same space as a 3-ton traditional unit.
We’ve also added a new motor harness, part A02624-G01, which replaces the existing A01472-G01 (208/230V EC) and A01472-G02 (120V EC) harnesses.
Technical Specifications:
| Name | Value |
|---|---|
| Unico Model | 1218, 2430, 3036, 3642 |
| Tonnage | 1.0-Ton, 1.5-Ton, 2.0-Ton, 2.5-Ton, 3.0-Ton, 3.5-Ton, 4.0-Ton, 4.5-Ton, 5.0-Ton |
| Model Series | M-Series, V-Series |
| Motor Type | PSC, EC |
| Material | Multiple |
| Power Supply | 120/1/60, 208-230/1/60, 230/1/60 |
| Brand | Unico |
| Installation Orientation | Horizontal, Vertical Upflow |
| Certifications | UL, RU, CSA, CE |
| Spare Part Type | Transformer |
Original: $67.13
-65%$67.13
$23.50Description
