V3642B-1EC2EHC - Vertical Air Handler, SCB, Variable Speed, 120V - 208/230V, 4 Row Coil, (HP) with HWC, E-Coated

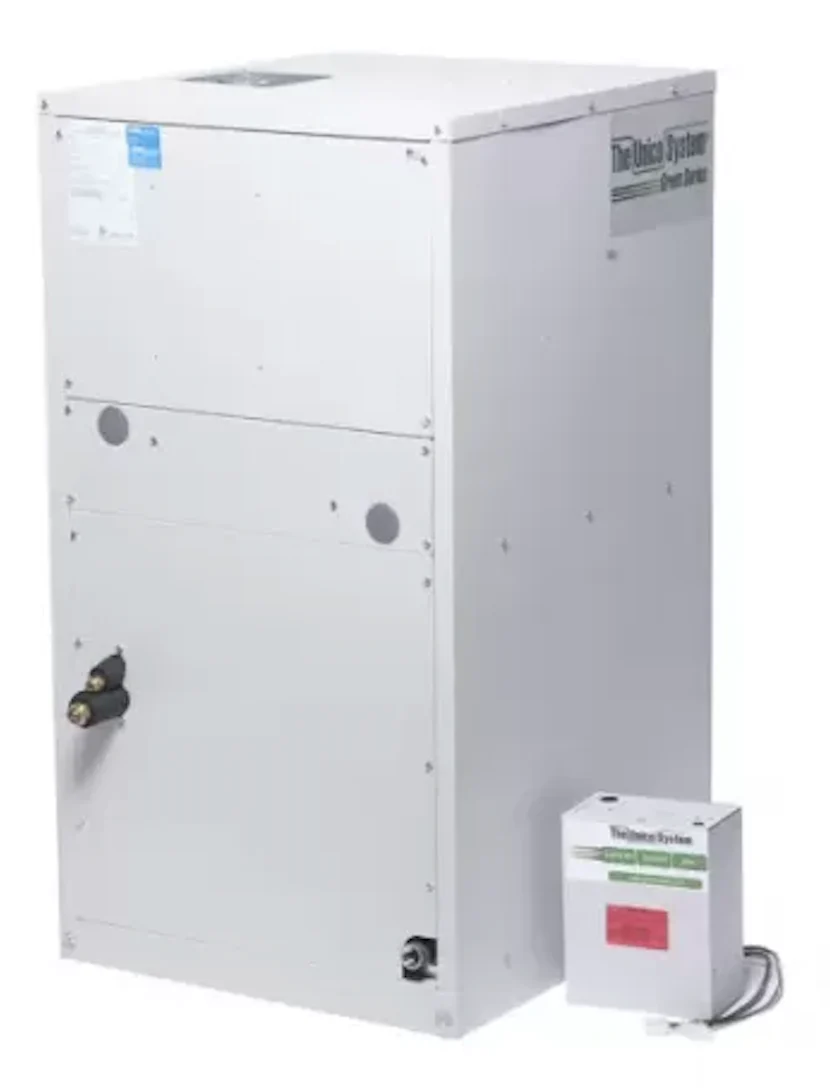

Product image 1
1 / 4

V3642B-1EC2EHC - Vertical Air Handler, SCB, Variable Speed, 120V - 208/230V, 4 Row Coil, (HP) with HWC, E-Coated

Ships in 31x26x46 inch pkg; 275 lbs

Unico V3642B-1EC2EHC 3-3.5 Ton Vertical AHU

Description:

  • This is our Coated V-Series one piece fan coil unit for vertical up flow applications in a closet or basement
  • This model is our 3 to 3.5 ton model with 230 volt ECM blower and heat pump DX coil which includes a R410A TXV and a hot water coil
  • It can be connected to a 3 to 3.5 ton heat pump unit from a third party

Features:

  • Easy service EC Motor (Variable Speed)
  • Removable access panels for ease of service
  • ASHRAE 62.2-2010 ventilation mode
  • Use as cooling only or heat pump
  • Optional hot water coil for heating
  • Heavy-duty closed cell insulation (no exposed fiberglass insulation)
  • Includes (shipped loose): R-410A TXV, Condensate trap, S.M.A.R.T. control board

Ships in 31x26x46 inch pkg; 275 lbs

Unico V3642B-1EC2EHC 3-3.5 Ton Vertical AHU

Description:

  • This is our Coated V-Series one piece fan coil unit for vertical up flow applications in a closet or basement
  • This model is our 3 to 3.5 ton model with 230 volt ECM blower and heat pump DX coil which includes a R410A TXV and a hot water coil
  • It can be connected to a 3 to 3.5 ton heat pump unit from a third party

Features:

  • Easy service EC Motor (Variable Speed)
  • Removable access panels for ease of service
  • ASHRAE 62.2-2010 ventilation mode
  • Use as cooling only or heat pump
  • Optional hot water coil for heating
  • Heavy-duty closed cell insulation (no exposed fiberglass insulation)
  • Includes (shipped loose): R-410A TXV, Condensate trap, S.M.A.R.T. control board
$6,235.16
V3642B-1EC2EHC - Vertical Air Handler, SCB, Variable Speed, 120V - 208/230V, 4 Row Coil, (HP) with HWC, E-Coated—
$6,235.16

Description

Ships in 31x26x46 inch pkg; 275 lbs

Unico V3642B-1EC2EHC 3-3.5 Ton Vertical AHU

Description:

  • This is our Coated V-Series one piece fan coil unit for vertical up flow applications in a closet or basement
  • This model is our 3 to 3.5 ton model with 230 volt ECM blower and heat pump DX coil which includes a R410A TXV and a hot water coil
  • It can be connected to a 3 to 3.5 ton heat pump unit from a third party

Features:

  • Easy service EC Motor (Variable Speed)
  • Removable access panels for ease of service
  • ASHRAE 62.2-2010 ventilation mode
  • Use as cooling only or heat pump
  • Optional hot water coil for heating
  • Heavy-duty closed cell insulation (no exposed fiberglass insulation)
  • Includes (shipped loose): R-410A TXV, Condensate trap, S.M.A.R.T. control board
